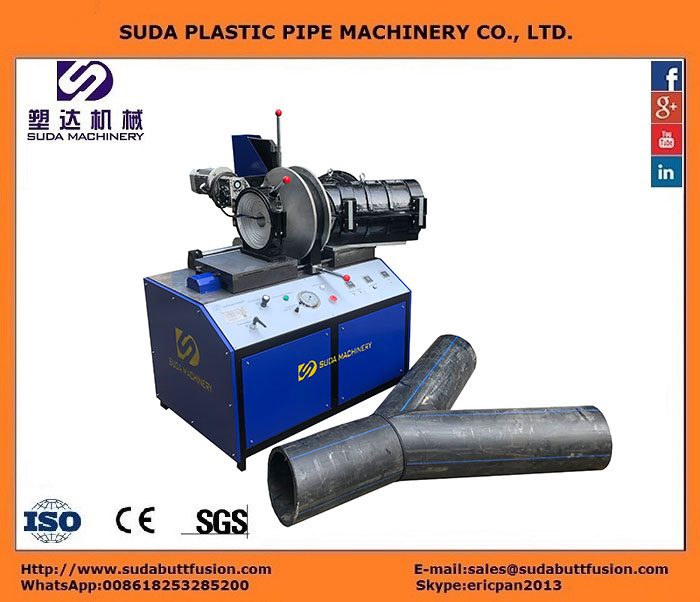

Workshop Fitting Machine
1. Suitable for fabricating Elbow, Tee, Y shape(45° and 60°）fittings of PE PP PVDF in workshop.
2. Integrated structure, nothing remains but to choose the different special clamps while fabricating different fittings.
3. Consist of Basic Frame, Hydraulic Unit, Trimmer, Heater and Electric Control Unit.
4. Removable PTFE coated heating plate with separate temperature control system.
5. Electric Trimmer with reversible double cutting edge blades.
6. Hydraulic unit provides welding machine with compressing power.
7. Low starting pressure ensures reliable welding quality of small pipes.
8. Including the Temperature Controller and Timer, easy to know the time and temperature.
Specifications
| Type | SDF315 |
| Materials for Welding | PE, PP, PVDF |
| Elbow (DN, mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm |
| Outside Diameter Ranges | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm |
| Tee (DN, mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm |
| Cross (DN, mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm |
| Wyes 45°&60° (DN, mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm |
| Environment Temperature | -5 ~ 45°C |
| Hydraulic Oil | 40 ~ 50 (kinematic viscosity) mm²/s, 40°C |
| Power Supply | ~380V ±10% |
| Frequency | 50 HZ |
| Total Current | 12.68 A |
| Total Power | 7.4 KW |
| Heating Plate | 5.15 KW |
| Planning Tool Motor | 1.5 KW |
| Hydraulic Unit Motor | 0.75 KW |
| Insulating Resistance | >1MΩ |
| Max. Hydraulic Pressure | 6 MPa |
| Total Section of Cylinders | 19.6 cm² |
| Max. Temperature of Heating Plate | 270°C |
| Difference in Surface Temperature of Heating Plate | ±7°C |
| Undesired Sound | < 70 dB |
| Oil Tank Volume | 55L |
| Total Weight (kg) | 800 kg |
